webiopi.devices.digital.mcp23XXX.MCP23009 Class Reference

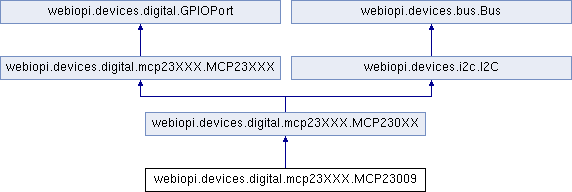

Inheritance diagram for webiopi.devices.digital.mcp23XXX.MCP23009:

Public Member Functions
def	__init__
Public Member Functions inherited from webiopi.devices.digital.mcp23XXX.MCP230XX
def	__init__
def	__str__
Public Member Functions inherited from webiopi.devices.digital.mcp23XXX.MCP23XXX
def	__init__
def	getAddress
def	getChannel
def	__digitalRead__
def	__digitalWrite__
def	__getFunction__
def	__setFunction__
def	__portRead__
def	__portWrite__
Public Member Functions inherited from webiopi.devices.digital.GPIOPort
def	__init__
def	checkDigitalChannel
def	checkDigitalValue
def	checkDigitalBanks
def	digitalCount
def	bankCount
def	__family__
def	__getFunction__
def	__setFunction__
def	__digitalRead__
def	__portRead__
def	__digitalWrite__
def	__portWrite__
def	getFunction
def	getFunctionString
def	setFunction
def	setFunctionString
def	digitalRead
def	wildcard
def	portRead
def	digitalWrite
def	portWrite
Public Member Functions inherited from webiopi.devices.i2c.I2C
def	__init__
def	__str__
def	readRegister
def	readRegisters
def	writeRegister
def	writeRegisters
Public Member Functions inherited from webiopi.devices.bus.Bus
def	__init__
def	open
def	close
def	read
def	readBytes
def	readByte
def	write
def	writeBytes
def	writeByte

Additional Inherited Members
Public Attributes inherited from webiopi.devices.digital.mcp23XXX.MCP230XX
	name
Public Attributes inherited from webiopi.devices.digital.mcp23XXX.MCP23XXX
	banks
Public Attributes inherited from webiopi.devices.digital.GPIOPort
	digitalChannelCount
	digitalBanksCount
Public Attributes inherited from webiopi.devices.i2c.I2C
	channel
	slave
Public Attributes inherited from webiopi.devices.bus.Bus
	busName
	device
	flag
	fd
Static Public Attributes inherited from webiopi.devices.digital.mcp23XXX.MCP23XXX
int	IODIR = 0x00
int	IPOL = 0x01
int	GPINTEN = 0x02
int	DEFVAL = 0x03
int	INTCON = 0x04
int	IOCON = 0x05
int	GPPU = 0x06
int	INTF = 0x07
int	INTCAP = 0x08
int	GPIO = 0x09
int	OLAT = 0x0A
Static Public Attributes inherited from webiopi.devices.digital.GPIOPort
int	IN = 0
int	OUT = 1
	LOW = False
	HIGH = True

Detailed Description

Definition at line 100 of file mcp23XXX.py.

Constructor & Destructor Documentation

def webiopi.devices.digital.mcp23XXX.MCP23009.__init__	(		self,
			slave = 0x20
	)

Definition at line 101 of file mcp23XXX.py.

---

The documentation for this class was generated from the following file:

• python/webiopi/devices/digital/mcp23XXX.py
