webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X Class Reference

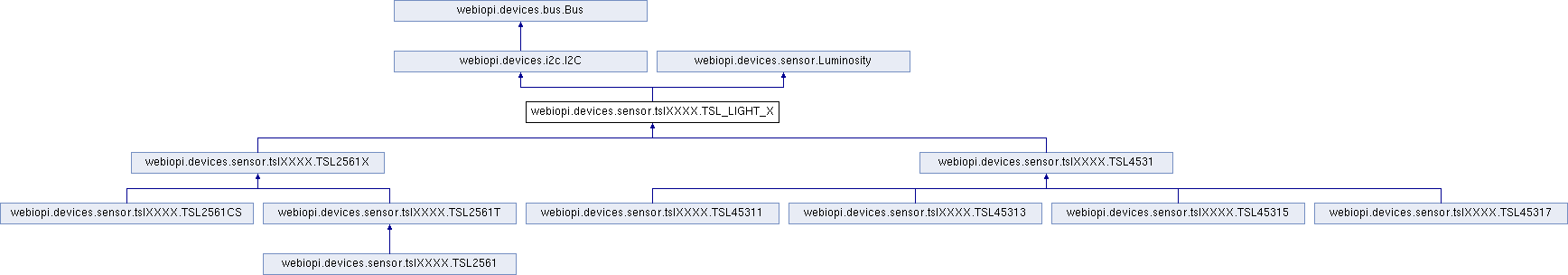

Inheritance diagram for webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X:

Public Member Functions
def	__init__
def	__str__
def	wake
def	__wake__
def	sleep
def	__sleep__
def	setTime
def	getTime
Public Member Functions inherited from webiopi.devices.i2c.I2C
def	__init__
def	__str__
def	readRegister
def	readRegisters
def	writeRegister
def	writeRegisters
Public Member Functions inherited from webiopi.devices.bus.Bus
def	__init__
def	open
def	close
def	read
def	readBytes
def	readByte
def	write
def	writeBytes
def	writeByte
Public Member Functions inherited from webiopi.devices.sensor.Luminosity
def	__family__
def	__getLux__
def	getLux

Public Attributes
	name
Public Attributes inherited from webiopi.devices.i2c.I2C
	channel
	slave
Public Attributes inherited from webiopi.devices.bus.Bus
	busName
	device
	flag
	fd

Static Public Attributes
int	VAL_COMMAND = 0x80
int	REG_CONTROL = 0x00
int	REG_CONFIG = 0x01
int	VAL_PWON = 0x03
int	VAL_PWOFF = 0x00
int	VAL_INVALID = -1

Detailed Description

Definition at line 30 of file tslXXXX.py.

Constructor & Destructor Documentation

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__init__	(		self,
			slave,
			time,
			name = "TSL_LIGHT_X"
	)

Definition at line 39 of file tslXXXX.py.

References webiopi.utils.types.toint().

Member Function Documentation

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__sleep__

(

self

)

Definition at line 57 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.REG_CONTROL, webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.VAL_PWOFF, webiopi.devices.i2c.I2C.writeRegister(), and webiopi.devices.digital.mcp23XXX.MCP23SXX.writeRegister().

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.sleep().

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__str__

(

self

)

Definition at line 45 of file tslXXXX.py.

References webiopi.devices.sensor.onewiretemp.OneWireTemp.name, webiopi.devices.analog.mcp3x0x.MCP3X0X.name, webiopi.devices.analog.mcp48XX.MCP48XX.name, webiopi.devices.digital.pcf8574.PCF8574.name, webiopi.devices.analog.ads1x1x.ADS1X1X.name, webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.name, webiopi.devices.digital.mcp23XXX.MCP230XX.name, webiopi.devices.analog.mcp3424.MCP3424.name, webiopi.devices.digital.mcp23XXX.MCP23SXX.name, webiopi.devices.i2c.I2C.slave, and webiopi.devices.digital.mcp23XXX.MCP23SXX.slave.

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__wake__

(

self

)

Definition at line 51 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.REG_CONTROL, webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.VAL_PWON, webiopi.devices.i2c.I2C.writeRegister(), and webiopi.devices.digital.mcp23XXX.MCP23SXX.writeRegister().

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.wake().

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.getTime

(

self

)

Definition at line 63 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__(), webiopi.devices.sensor.tslXXXX.TSL4531.__getTime__(), and webiopi.devices.clock.Clock.__getTime__().

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.setTime	(		self,
			time
	)

Definition at line 60 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561X.__setTime__(), webiopi.devices.sensor.tslXXXX.TSL4531.__setTime__(), and webiopi.devices.clock.Clock.__setTime__().

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.sleep

(

self

)

Definition at line 54 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__sleep__().

def webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.wake

(

self

)

Definition at line 48 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__wake__().

Member Data Documentation

webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.name

Definition at line 41 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__str__().

int webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.REG_CONFIG = 0x01

static

Definition at line 33 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__(), webiopi.devices.sensor.tslXXXX.TSL4531.__getTime__(), and webiopi.devices.sensor.tslXXXX.TSL2561X.getGain().

int webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.REG_CONTROL = 0x00

static

Definition at line 32 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__sleep__(), and webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__wake__().

int webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.VAL_COMMAND = 0x80

static

Definition at line 31 of file tslXXXX.py.

int webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.VAL_INVALID = -1

static

Definition at line 37 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561CS.__calculateLux__(), webiopi.devices.sensor.tslXXXX.TSL2561T.__calculateLux__(), and webiopi.devices.sensor.vcnl4000.VCNL4000.__getFrequency__().

int webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.VAL_PWOFF = 0x00

static

Definition at line 36 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__sleep__().

int webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.VAL_PWON = 0x03

static

Definition at line 35 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.__wake__().

---

The documentation for this class was generated from the following file:

• python/webiopi/devices/sensor/tslXXXX.py
