webiopi.devices.sensor.tslXXXX.TSL2561X Class Reference

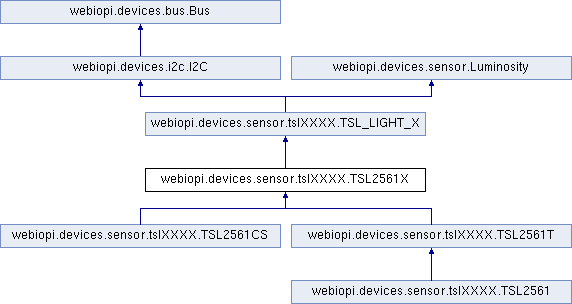

Inheritance diagram for webiopi.devices.sensor.tslXXXX.TSL2561X:

Public Member Functions
def	__init__
def	__getLux__
def	setGain
def	getGain
def	__setTime__
def	__getTime__
Public Member Functions inherited from webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X
def	__init__
def	__str__
def	wake
def	__wake__
def	sleep
def	__sleep__
def	setTime
def	getTime
Public Member Functions inherited from webiopi.devices.i2c.I2C
def	__init__
def	__str__
def	readRegister
def	readRegisters
def	writeRegister
def	writeRegisters
Public Member Functions inherited from webiopi.devices.bus.Bus
def	__init__
def	open
def	close
def	read
def	readBytes
def	readByte
def	write
def	writeBytes
def	writeByte
Public Member Functions inherited from webiopi.devices.sensor.Luminosity
def	__family__
def	__getLux__
def	getLux

Public Attributes
	gain_multiplier
	time_multiplier
Public Attributes inherited from webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X
	name
Public Attributes inherited from webiopi.devices.i2c.I2C
	channel
	slave
Public Attributes inherited from webiopi.devices.bus.Bus
	busName
	device
	flag
	fd

Static Public Attributes
int	VAL_TIME_402_MS = 0x02
int	VAL_TIME_101_MS = 0x01
int	VAL_TIME_14_MS = 0x00
int	REG_CHANNEL_0_LOW = 0x0C
int	REG_CHANNEL_1_LOW = 0x0E
int	MASK_GAIN = 0x10
int	MASK_TIME = 0x03
Static Public Attributes inherited from webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X
int	VAL_COMMAND = 0x80
int	REG_CONTROL = 0x00
int	REG_CONFIG = 0x01
int	VAL_PWON = 0x03
int	VAL_PWOFF = 0x00
int	VAL_INVALID = -1

Detailed Description

Definition at line 66 of file tslXXXX.py.

Constructor & Destructor Documentation

def webiopi.devices.sensor.tslXXXX.TSL2561X.__init__	(		self,
			slave,
			time,
			gain,
			name = "TSL2561X"
	)

Definition at line 77 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561X.setGain(), and webiopi.utils.types.toint().

Member Function Documentation

def webiopi.devices.sensor.tslXXXX.TSL2561X.__getLux__

(

self

)

Definition at line 81 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561CS.__calculateLux__(), webiopi.devices.sensor.vcnl4000.VCNL4000.__calculateLux__(), webiopi.devices.sensor.tslXXXX.TSL2561T.__calculateLux__(), webiopi.devices.sensor.tslXXXX.TSL2561X.gain_multiplier, webiopi.devices.i2c.I2C.readRegisters(), webiopi.devices.sensor.tslXXXX.TSL2561X.REG_CHANNEL_0_LOW, webiopi.devices.sensor.tslXXXX.TSL2561X.REG_CHANNEL_1_LOW, and webiopi.devices.sensor.tslXXXX.TSL2561X.time_multiplier.

def webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__

(

self

)

Definition at line 129 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561X.MASK_TIME, webiopi.devices.i2c.I2C.readRegister(), webiopi.devices.digital.mcp23XXX.MCP23SXX.readRegister(), webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.REG_CONFIG, webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_101_MS, webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_14_MS, and webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_402_MS.

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.getTime().

def webiopi.devices.sensor.tslXXXX.TSL2561X.__setTime__	(		self,
			time
	)

Definition at line 111 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_402_MS.

Referenced by webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.setTime().

def webiopi.devices.sensor.tslXXXX.TSL2561X.getGain

(

self

)

Definition at line 104 of file tslXXXX.py.

References webiopi.devices.sensor.tslXXXX.TSL2561X.MASK_GAIN, webiopi.devices.i2c.I2C.readRegister(), webiopi.devices.digital.mcp23XXX.MCP23SXX.readRegister(), and webiopi.devices.sensor.tslXXXX.TSL_LIGHT_X.REG_CONFIG.

def webiopi.devices.sensor.tslXXXX.TSL2561X.setGain	(		self,
			gain
	)

Definition at line 89 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__init__().

Member Data Documentation

webiopi.devices.sensor.tslXXXX.TSL2561X.gain_multiplier

Definition at line 92 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getLux__().

int webiopi.devices.sensor.tslXXXX.TSL2561X.MASK_GAIN = 0x10

static

Definition at line 74 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.getGain().

int webiopi.devices.sensor.tslXXXX.TSL2561X.MASK_TIME = 0x03

static

Definition at line 75 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__().

int webiopi.devices.sensor.tslXXXX.TSL2561X.REG_CHANNEL_0_LOW = 0x0C

static

Definition at line 71 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getLux__().

int webiopi.devices.sensor.tslXXXX.TSL2561X.REG_CHANNEL_1_LOW = 0x0E

static

Definition at line 72 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getLux__().

webiopi.devices.sensor.tslXXXX.TSL2561X.time_multiplier

Definition at line 116 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getLux__(), and webiopi.devices.sensor.tslXXXX.TSL4531.__getLux__().

int webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_101_MS = 0x01

static

Definition at line 68 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__().

int webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_14_MS = 0x00

static

Definition at line 69 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__().

int webiopi.devices.sensor.tslXXXX.TSL2561X.VAL_TIME_402_MS = 0x02

static

Definition at line 67 of file tslXXXX.py.

Referenced by webiopi.devices.sensor.tslXXXX.TSL2561X.__getTime__(), and webiopi.devices.sensor.tslXXXX.TSL2561X.__setTime__().

---

The documentation for this class was generated from the following file:

• python/webiopi/devices/sensor/tslXXXX.py
